Android Action Bar Tutorial with 2.2+ Compatibility

I have an Android Action Bar Tutorial for you guys! Android ActionBar looks good on our smartphone apps and at the same time, it is really useful. Aside from displaying your app’s title or section, the ActionBar can also be used as a back function (upper left) or a viewable button or dropdown options (upper right).

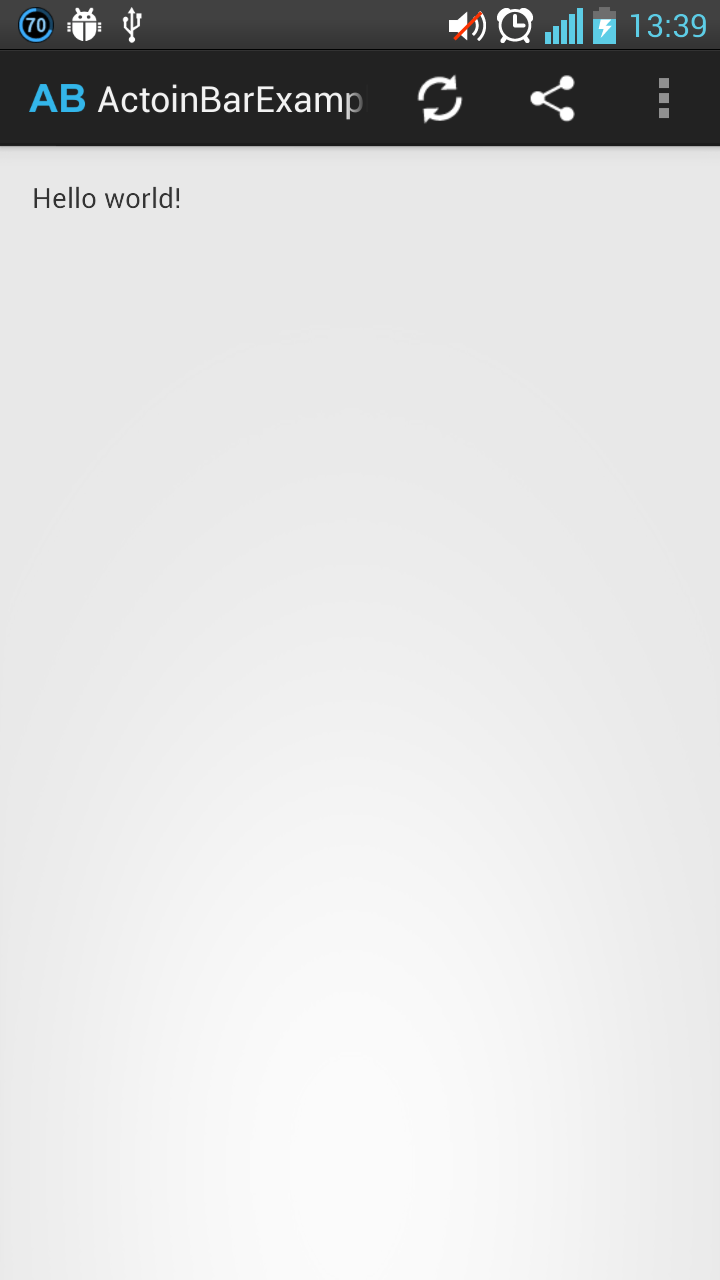

android action bar tutorial

This is a step by step guide on how you can create an ActionBar for your awesome Android app. I’ll walk you through the process of creating a very simple but awesome android ActionBar. Let’s get started!


DOWNLOAD SOURCE CODE

Android Action Bar Tutorial Step by Step

1. Create new project.

Go to File > New > Android Application Project

2. Add three icons to the project’s res/drawable-hdpi/ directory

You can download the Android design icon pack.

3. Modify res/menu/main.xml and add three ActionBar items.

<menu xmlns:android="http://schemas.android.com/apk/res/android" >

    <item
        android:id="@+id/refresh"
        android:icon="@drawable/ic_action_refresh"
        android:orderInCategory="100"
        android:showAsAction="always"
        android:title="Refresh"/>
    <item
        android:id="@+id/copyLink"
        android:icon="@drawable/ic_action_copy"
        android:orderInCategory="100"
        android:showAsAction="collapseActionView"
        android:title="Copy Link"/>
    <item
        android:id="@+id/share"
        android:icon="@drawable/ic_action_share"
        android:orderInCategory="100"
        android:showAsAction="always"
        android:title="Share"/>

</menu>

4. Create the onOptionsItemSelected() method

This is inside MainActity.java

// handle click events for action bar items
@Override
public boolean onOptionsItemSelected(MenuItem item) {

    switch (item.getItemId()) {

        case R.id.refresh:
            showToast("Refresh was clicked.");
            return true;

        case R.id.copyLink:
            showToast("Copy link was clicked.");
            return true;

        case R.id.share:
            showToast("Share was clicked.");
            return true;

        default:
            return super.onOptionsItemSelected(item);
    }
}

5. Create the showToast() for each case

This is inside MainActity.java

// so that we know something was triggered
public void showToast(String msg){
    Toast.makeText(this, msg, Toast.LENGTH_SHORT).show();
}

6. Create getOverflowMenu()

This is inside MainActity.java

// put the other two menu on the three dots (overflow)
private void getOverflowMenu() {

    try {

       ViewConfiguration config = ViewConfiguration.get(this);
       java.lang.reflect.Field menuKeyField = ViewConfiguration.class.getDeclaredField("sHasPermanentMenuKey");
       if(menuKeyField != null) {
           menuKeyField.setAccessible(true);
           menuKeyField.setBoolean(config, false);
       }
   } catch (Exception e) {
       e.printStackTrace();
   }

}

Call it from onCreate() to show unshown actions as three dots

getOverflowMenu();

Final Code

MainActivity.java

package com.example.actionbarexample;

import com.example.actoinbarexample.R;

import android.os.Bundle;
import android.app.Activity;
import android.view.Menu;
import android.view.MenuItem;
import android.view.ViewConfiguration;
import android.widget.Toast;

public class MainActivity extends Activity {

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);

        getOverflowMenu();

    }

    // inflate for action bar
    @Override
    public boolean onCreateOptionsMenu(Menu menu) {
        // Inflate the menu; this adds items to the action bar if it is present.
        getMenuInflater().inflate(R.menu.main, menu);
        return true;
    }

    // handle click events for action bar items
    @Override
    public boolean onOptionsItemSelected(MenuItem item) {

        switch (item.getItemId()) {

            case R.id.refresh:
                showToast("Refresh was clicked.");
                return true;

            case R.id.copyLink:
                showToast("Copy link was clicked.");
                return true;

            case R.id.share:
                showToast("Share was clicked.");
                return true;

            default:
                return super.onOptionsItemSelected(item);
        }
    }

    // put the other two menu on the three dots (overflow)
    private void getOverflowMenu() {

        try {

           ViewConfiguration config = ViewConfiguration.get(this);
           java.lang.reflect.Field menuKeyField = ViewConfiguration.class.getDeclaredField("sHasPermanentMenuKey");
           if(menuKeyField != null) {
               menuKeyField.setAccessible(true);
               menuKeyField.setBoolean(config, false);
           }
       } catch (Exception e) {
           e.printStackTrace();
       }

     }

    // so that we know something was triggered
    public void showToast(String msg){
        Toast.makeText(this, msg, Toast.LENGTH_SHORT).show();
    }

}

Lower Android (2.2+) Version Compatibility

Android ActionBar only works for Honeycomb and Up. To make it work with pre-honeycome devices, you should use the Android support library. Download it first using your SDK manager and then follow the step by step guide here.

This link might also help you.

I found the following video helpful too.

More about the ActionBar:

http://stackoverflow.com/a/20088711
http://developer.android.com/design/patterns/actionbar.html
http://developer.android.com/guide/topics/ui/actionbar.html
