Android SQLite Transaction Example with INSERT Prepared Statement

Today I’m going to share an Android SQLite transaction example that I consider as one of the most useful test I made with Android SQLite. I’m really excited to share this since it helped me a lot and maybe it can help some more people as well.

This post will cover the following contents:

1.0 The Back Story
2.0 Insert Speed Problem
3.0 Android SQLite Transaction Example Source Code
4.0 Application Code Output
5.0 Other Tips On Improving Insert Speed

1.0 The Back Story

Recently, my app was required to download 30,000 records during sync. I think that’s a lot of data for a phone app, but that’s the way our app is.

The data were from a URL with data in JSON format. Our Android app has to read, parse and store the data on the device SQLite database.

30,000 records in one URL load is not advisable, we did several tests. I tried to parse it but failed, memory leaks occur, sometimes it was an out of memory error. So I tried some more test until I found the correct number of records per URL. 7,000 records and our app was able to read and parse it all. But to be safer, I made it to 5,000 records per page.

We had to paginate the download, so in our case, we had 6 pages. 6 pages x 5,000 records = 30,000. So yeah, it was very effective. All records were downloaded and inserted to the device SQLite database.

2.0 Insert Speed Problem

But before we were able to efficiently insert the records to the database, we run into the problem of “insert speed”. The usual insert command in Android is slow, so we had to use a transaction and prepared statement.

In our case, we use INSERT OR REPLACE INTO on the insert query since we want to update a row if it already exists, based on the trigger (INDEX) created.

If you’re using INSERT OR REPLACE INTO command, you have to create a trigger. This SQL trigger is executed after the table has been created (see DatabaseHandler.java below)

Another important factor in speeding up your insert is using prepared statements.

3.0 Android SQLite Transaction Example Source Code

Our source code will have three main files, the MainActivity.java, DatabaseHandler.java and activity_main.xml. I made the code as simple as possible for this example to be clear and easy to follow.

DOWNLOAD SOURCE CODE

MainActivity.java – our program’s first run, it also contains the AsyncTask that will be executed when the user clicks a button.

package com.example.androidsqlitetransaction;

import android.os.AsyncTask;
import android.os.Bundle;
import android.app.Activity;
import android.view.View;
import android.widget.EditText;
import android.widget.TextView;

public class MainActivity extends Activity {

    final String TAG = "MainActivity.java";
    EditText editTextRecordNum;
    TextView tvStatus;

    @Override
    protected void onCreate(Bundle savedInstanceState) {

        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);

        View.OnClickListener handler = new View.OnClickListener() {
            public void onClick(View v) {

                switch (v.getId()) {

                case R.id.buttonNormalInsert:
                    new AsyncInsertData("normal").execute();
                    break;
                case R.id.buttonFastInsert:
                    new AsyncInsertData("fast").execute();
                    break;
                }
            }
        };

        // EditText for entering desired number of records to be inserted
        editTextRecordNum = (EditText) findViewById(R.id.editTextRecordNum);

        // Button for normal and fast insert
        findViewById(R.id.buttonNormalInsert).setOnClickListener(handler);
        findViewById(R.id.buttonFastInsert).setOnClickListener(handler);

        // status TextView
        tvStatus = (TextView) findViewById(R.id.textViewStatus);

    }

    // we used AsyncTask so it won't block the UI thread during inserts.
    class AsyncInsertData extends AsyncTask<String, String, String> {

        DatabaseHandler databaseHandler;
        String type;
        long timeElapsed;

        protected AsyncInsertData(String type){
            this.type  = type;
            this.databaseHandler = new DatabaseHandler(MainActivity.this);
        }

        // @type - can be 'normal' or 'fast'
        @Override
        protected void onPreExecute() {
            super.onPreExecute();
            tvStatus.setText("Inserting " + editTextRecordNum.getText() + " records...");
        }

        @Override
        protected String doInBackground(String... aurl) {

            try {

                // get number of records to be inserted
                int insertCount = Integer.parseInt(editTextRecordNum.getText().toString());

                // empty the table
                databaseHandler.deleteRecords();

                // keep track of execution time
                long lStartTime = System.nanoTime();

                if (type.equals("normal")) {
                    databaseHandler.insertNormal(insertCount);
                } else {
                    databaseHandler.insertFast(insertCount);
                }

                // execution finised
                long lEndTime = System.nanoTime();

                // display execution time
                timeElapsed = lEndTime - lStartTime;

            } catch (Exception e) {
                e.printStackTrace();
            }
            return null;
        }

        protected void onPostExecute(String unused) {
            tvStatus.setText("Done inserting " + databaseHandler.countRecords() + " records. Time elapsed: " + timeElapsed / 1000000 + " ms.");
        }

    }
}

DatabaseHandler.java – handles the database operations such as table creation, emptying the database, counting database records and the inserting our data using a loop.

package com.example.androidsqlitetransaction;

import android.content.ContentValues;
import android.content.Context;
import android.database.Cursor;
import android.database.sqlite.SQLiteDatabase;
import android.database.sqlite.SQLiteOpenHelper;
import android.database.sqlite.SQLiteStatement;
import android.util.Log;

public class DatabaseHandler extends SQLiteOpenHelper {

    // for our logs
    public static final String TAG = "DatabaseHandler.java";

    // database version
    private static final int DATABASE_VERSION = 7;

    // database name
    protected static final String DATABASE_NAME = "NinjaDatabase2";

    // table details
    public String tableName = "locations";
    public String fieldObjectId = "id";
    public String fieldObjectName = "name";
    public String fieldObjectDescription = "description";

    // constructor
    public DatabaseHandler(Context context) {
        super(context, DATABASE_NAME, null, DATABASE_VERSION);
    }

    // creating table
    @Override
    public void onCreate(SQLiteDatabase db) {

        String sql = "";

        sql += "CREATE TABLE " + tableName;
        sql += " ( ";
        sql += fieldObjectId + " INTEGER PRIMARY KEY AUTOINCREMENT, ";
        sql += fieldObjectName + " TEXT, ";
        sql += fieldObjectDescription + " TEXT ";
        sql += " ) ";

        db.execSQL(sql);

        // create the index for our INSERT OR REPLACE INTO statement.
        // this acts as the WHERE name="name input" AND description="description input"
        // if that WHERE clause is true, I mean, it finds the same name and description in the database,
        // it will be REPLACEd.
        // ELSE, what's in the database will remain and the input will be INSERTed (new record)
        String INDEX = "CREATE UNIQUE INDEX locations_index ON "
                        + tableName + " (name, description)";

        db.execSQL(INDEX);
    }


    // When upgrading the database, it will drop the current table and recreate.
    @Override
    public void onUpgrade(SQLiteDatabase db, int oldVersion, int newVersion) {

        String sql = "DROP TABLE IF EXISTS " + tableName;
        db.execSQL(sql);

        onCreate(db);
    }

    // insert data using transaction and prepared statement
    public void insertFast(int insertCount) {

        // you can use INSERT only
        String sql = "INSERT OR REPLACE INTO " + tableName + " ( name, description ) VALUES ( ?, ? )";

        SQLiteDatabase db = this.getWritableDatabase();

        /*
         * According to the docs http://developer.android.com/reference/android/database/sqlite/SQLiteDatabase.html
         * Writers should use beginTransactionNonExclusive() or beginTransactionWithListenerNonExclusive(SQLiteTransactionListener)
         * to start a transaction. Non-exclusive mode allows database file to be in readable by other threads executing queries.
         */
        db.beginTransactionNonExclusive();
        // db.beginTransaction();

        SQLiteStatement stmt = db.compileStatement(sql);

        for(int x=1; x<=insertCount; x++){

            stmt.bindString(1, "Name # " + x);
            stmt.bindString(2, "Description # " + x);

            stmt.execute();
            stmt.clearBindings();

        }

        db.setTransactionSuccessful();
        db.endTransaction();

        db.close();
    }

    // inserts the record without using transaction and prepare statement
    public void insertNormal(int insertCount){
        try{

            SQLiteDatabase db = this.getWritableDatabase();

            for(int x=1; x<=insertCount; x++){

                ContentValues values = new ContentValues();
                values.put(fieldObjectName, "Name # " + x);
                values.put(fieldObjectDescription, "Description # " + x);

                db.insert(tableName, null, values);

            }

            db.close();

        }catch(Exception e){
            e.printStackTrace();
        }
    }

    // deletes all records
    public void deleteRecords(){

        SQLiteDatabase db = this.getWritableDatabase();
        db.execSQL("delete from "+ tableName);
        db.close();
    }

    // count records
    public int countRecords(){

        SQLiteDatabase db = this.getWritableDatabase();

        Cursor cursor = db.rawQuery("SELECT count(*) from " + tableName, null);
        cursor.moveToFirst();

        int recCount = cursor.getInt(0);

        cursor.close();
        db.close();

        return recCount;
    }

}

activity_main.xml – the layout so we can enter the desired number of records to be inserted, choose whether we want it to be a ‘normal’ or ‘fast’ insert, and the status of the operation.

<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:paddingBottom="@dimen/activity_vertical_margin"
    android:paddingLeft="@dimen/activity_horizontal_margin"
    android:paddingRight="@dimen/activity_horizontal_margin"
    android:paddingTop="@dimen/activity_vertical_margin"
    tools:context=".MainActivity" >

    <EditText
        android:id="@+id/editTextRecordNum"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:layout_alignParentLeft="true"
        android:layout_alignParentTop="true"
        android:inputType="number"
        android:singleLine="true"
        android:ems="10" >

        <requestFocus />
    </EditText>

    <Button
        android:id="@+id/buttonNormalInsert"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_alignLeft="@+id/editTextRecordNum"
        android:layout_below="@+id/editTextRecordNum"
        android:text="Normal Insert" />

    <Button
        android:id="@+id/buttonFastInsert"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_alignBaseline="@+id/buttonNormalInsert"
        android:layout_alignBottom="@+id/buttonNormalInsert"
        android:layout_toRightOf="@+id/buttonNormalInsert"
        android:text="Fast Insert" />

    <TextView
        android:id="@+id/textViewStatus"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_alignLeft="@+id/buttonNormalInsert"
        android:layout_below="@+id/buttonNormalInsert"
        android:padding="10dp"
        android:text="Status" />

</RelativeLayout>

4.0 Android SQLite Transaction Example Code Output

See our code’s output screenshots below…

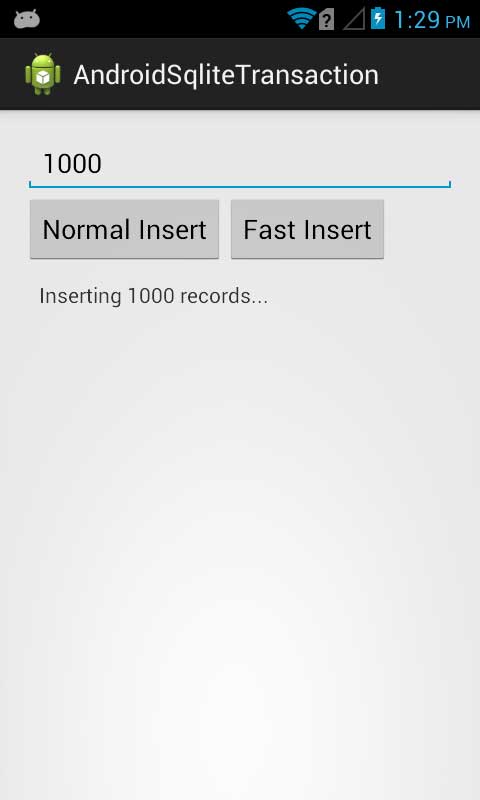

When you entered 1000 as number of records to be inserted and pressed either the “Normal Insert” or “Fast Insert” button.

android sqlite transaction example

After inserting 1000 the “Normal Insert” way.

the normal insert way

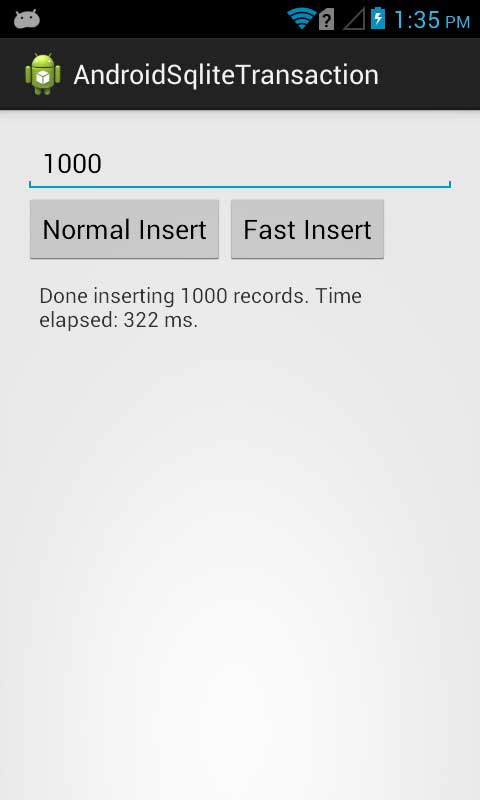

After inserting 1000 the “Fast Insert” way.

the fast insert way - sqlite prepared statement

See the huge difference in insert speed? Inserting 1,000 records were from 54,615 milliseconds (almost 1 minute) down to 322 milliseconds!

5.0 Other Tips On Improving Insert Speed

Some other important points:

1. Do not put a “log” inside a loop, it affects the program execution and slows down the performance. For instance, Log.v(TAG, “Record was created.”); was inside a loop where you also insert the data.

2. Do not instantiate an object or class inside a loop, that’s the worst. The “new” keywords will slow down the performance. For instance, ValueConverter valueConverter = new ValueConverter(); will make you lonely for the rest of your life if it was inside a loop where you also insert the data.

If you have other thoughts or want to correct me, or something, please drop it in the comments section below. I’m willing to update this post for new information, ideas and tips that you can give. Thanks for reading this Android SQLite transaction example!
